    Ecoboost timing Chain replacement

    So i had the phaser rattle and the engine started throwing the P0016 codes. So i did as much research as i could to figure out how to do this work myself as my truck was out of warranty. So I tore the truck down and replaced the chain phasers and guides. I couldnt find a complete write-up and figured id see if anyone would be interested. I signed up for a ford service thing so i could get access to all the torque specifications. There are im sure a lot of people out there who have trucks out of warranty and dont want to spend 3000$ to have the dealer perform this work. So post up and if there is enough interest ill put something together for the job. Honestly its not that hard just time consuming and very few special tools are actually needed.

  2. #2
    Eco-Beast winchested's Avatar

    Join Date
    Aug 2013
    Location
    Southern Ontario, Canada
    Posts
    4,649
    Member #
    2128
    Liked
    1697 times
    There was a small write up at f150forum but a more detailed one would be amazing especially if you took step by step pics but that's quite time consuming during the job.

    Special tools being a cam holding tool and crank pulley remover?

    It would be great and we could get a sticky with all the parts referenced in the tsb etc and torque specs.

    I know if it happens again on my truck I'll be doing it myself.
    2011 XLT Screw 6.5' Box, Tux Black, 4" BDS lift, 34" BFG KO2 tires, 18x8.5" +18 XD spy Wheels, PTM oem Flares. Rampage Slimline nerf bars. 5* Tuned 87 P/T.

  3. #3
    Rookie Patf10's Avatar

    Join Date
    Jan 2017
    Location
    PA
    Posts
    3
    Member #
    26809
    Liked
    1 times
    I dont have step by step pictures but i can provide a lot of part numbers and the tools and techniques that I used. Ill get something together. It will at least get people in the right direction to be able to do the job themselves.
    winchested likes this.

  4. #4
    Eco-Beast winchested's Avatar

    Join Date
    Aug 2013
    Location
    Southern Ontario, Canada
    Posts
    4,649
    Member #
    2128
    Liked
    1697 times
    Thanks Pat.
    2011 XLT Screw 6.5' Box, Tux Black, 4" BDS lift, 34" BFG KO2 tires, 18x8.5" +18 XD spy Wheels, PTM oem Flares. Rampage Slimline nerf bars. 5* Tuned 87 P/T.

  5. #5
    Ecoboost Veteran aj.n.amber's Avatar

    Join Date
    Feb 2016
    Location
    Lockport, NY
    Posts
    363
    Member #
    14906
    Liked
    46 times
    Quote Originally Posted by Patf10 View Post
    I dont have step by step pictures but i can provide a lot of part numbers and the tools and techniques that I used. Ill get something together. It will at least get people in the right direction to be able to do the job themselves.
    That would be awesome. I'll have to do it one day, and maybe I'll put together all of it from what I can from photos and descriptions around to do as much detailed write up as I can, post it on my site. Unless mine gets worse and I have to do it in spring.

    Anyways write up and any additional info would be very helpful. I got a kid on the way coming very soon and no $3k to be spending yup that would be me, that guy. Haha.

    Thanks for any info you post.

    Current: 2011 F150 Eco STX 3.5L 4x4 6'
    Current Toy: 2016 Keystone Springdale Summerland 2980BHGS
    Previous: 2003 F150 FX4 4x4 5.5'
    Ecoboost Guides & Info:
    - http://f150ecoboost.com
    RV Keystone Springdale Summerland:
    http://bit.ly/2ihPPHI
    Travel Trailer & RV Fun Times:
    http://bit.ly/2ihLzbf
    2011 F150 XLT XTR 3.73 SuperCrew Ecoboost.... w/Tow Package w/o Payload Package...

  6. #6
    Rookie jar944's Avatar

    Join Date
    Jan 2017
    Posts
    6
    Member #
    26697
    Liked
    2 times
    Feel free to use these pics.

    Ford service manual


    Fuel pump control under bed

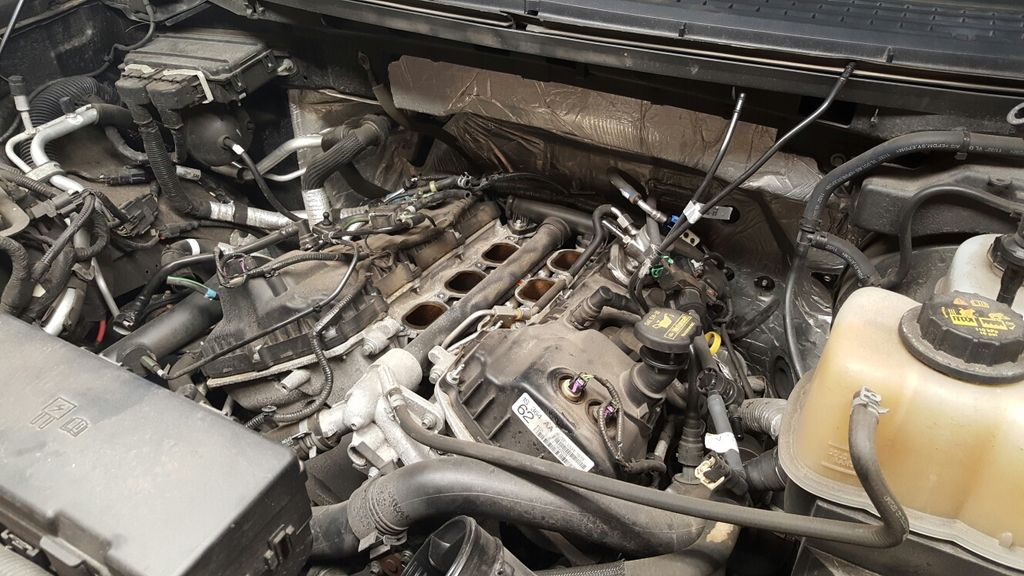

    Intake off


    Driver side turbo plumbing removed

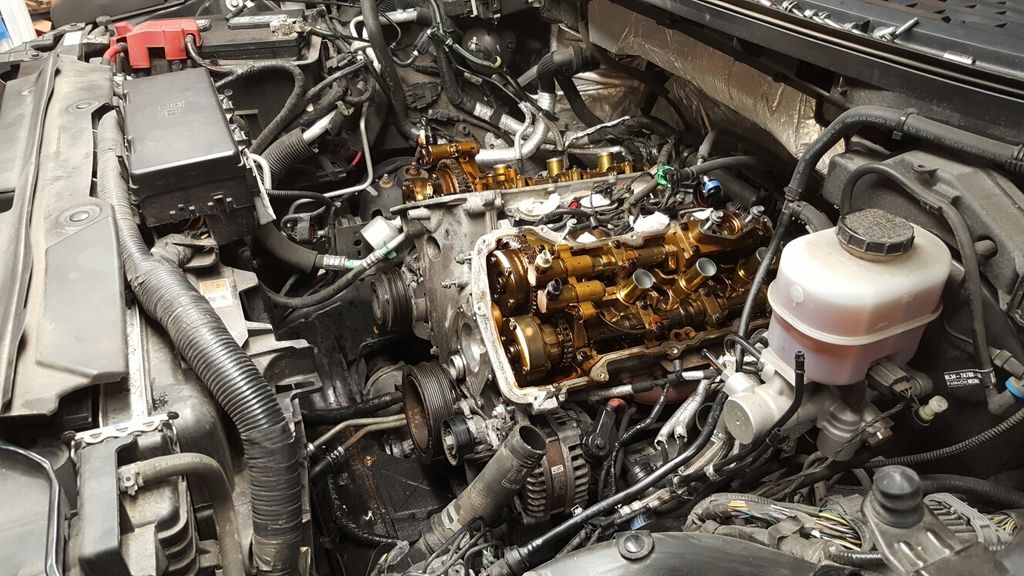

    Valve covers off

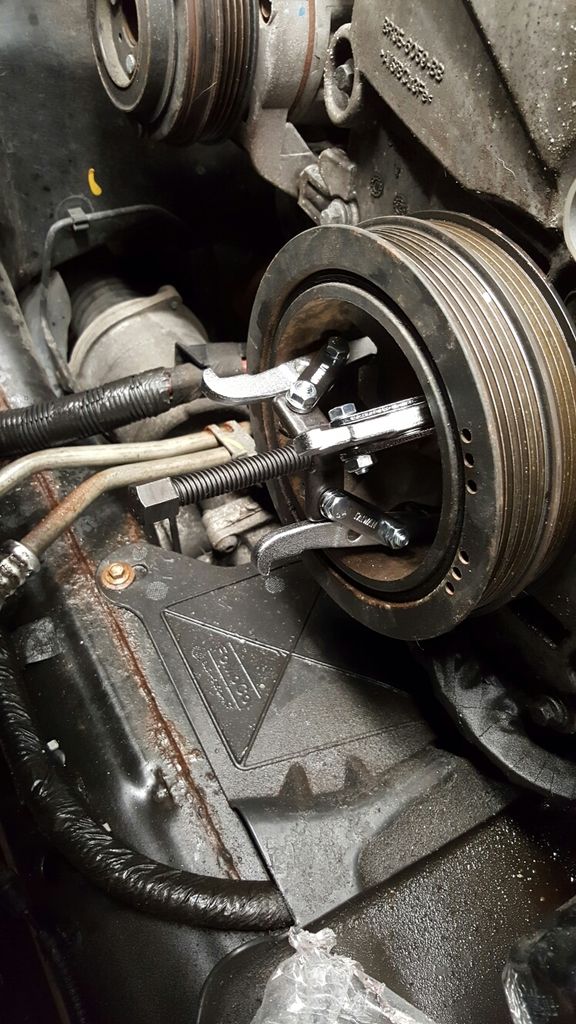

    Crank pulley puller

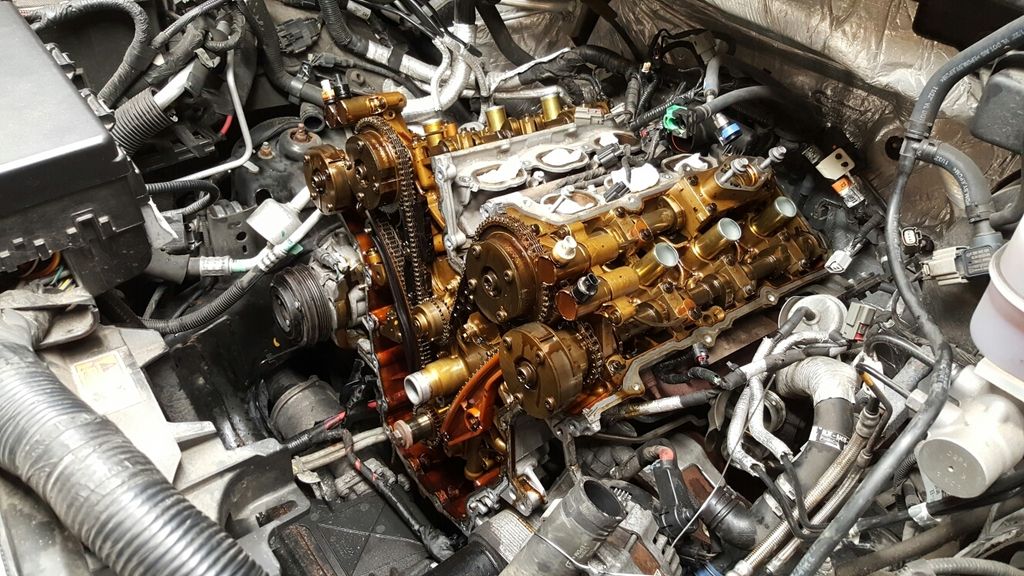

    Front cover off


    Worn intake gear

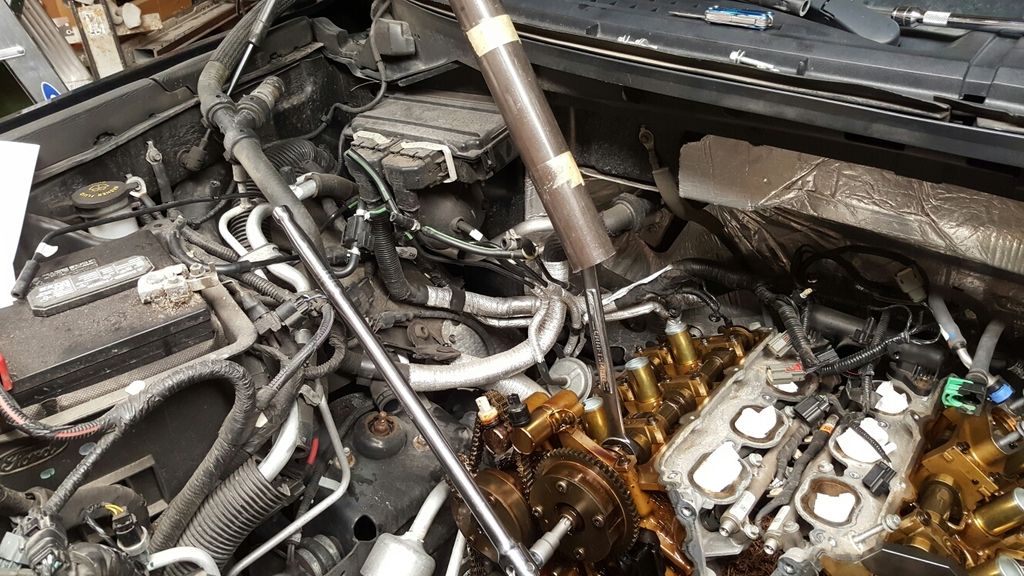

    Torx plus TP-55, 22mm wrench, breaker Bar and a pipe for the cam gear removal
